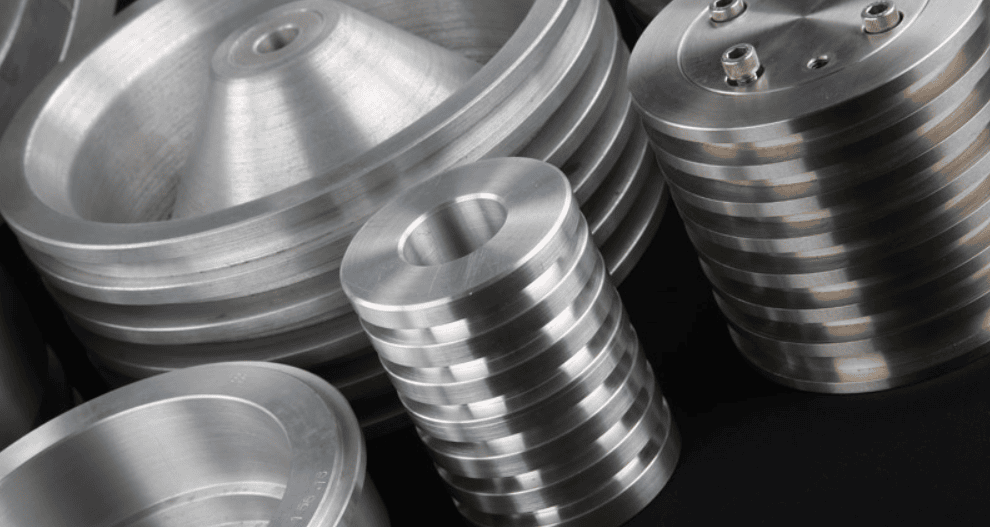

Pistons and Piston and Rod Assemblies
Piston and rod assemblies play a key role in the compression process. The various parts of this assembly work together to enable reciprocating compressors to operate successfully. The components of a piston assembly are designed to compress gases in industrial applications and other specialized fields.

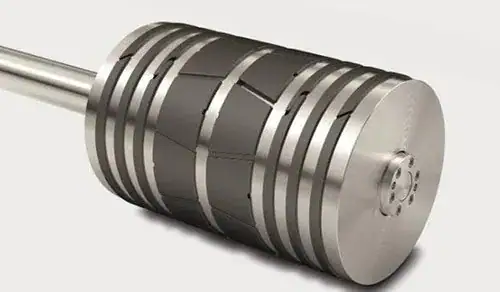

A piston assembly is composed of its piston end, which creates a seal within the cylinder, maintaining compression and preventing gas from leaking; piston rings, which encircle the piston end and seal the gap between the head and the cylinder walls; the piston rod, which links the piston end to the crosshead; the piston nut, which secures the rod to the piston end; and the piston cup, which provides adequate spacing for the required stroke of the compressor.
Request a Quote
Learn more about all the parts we offer at Patriot Compressor Parts. Contact us to order the essential parts your business needs.

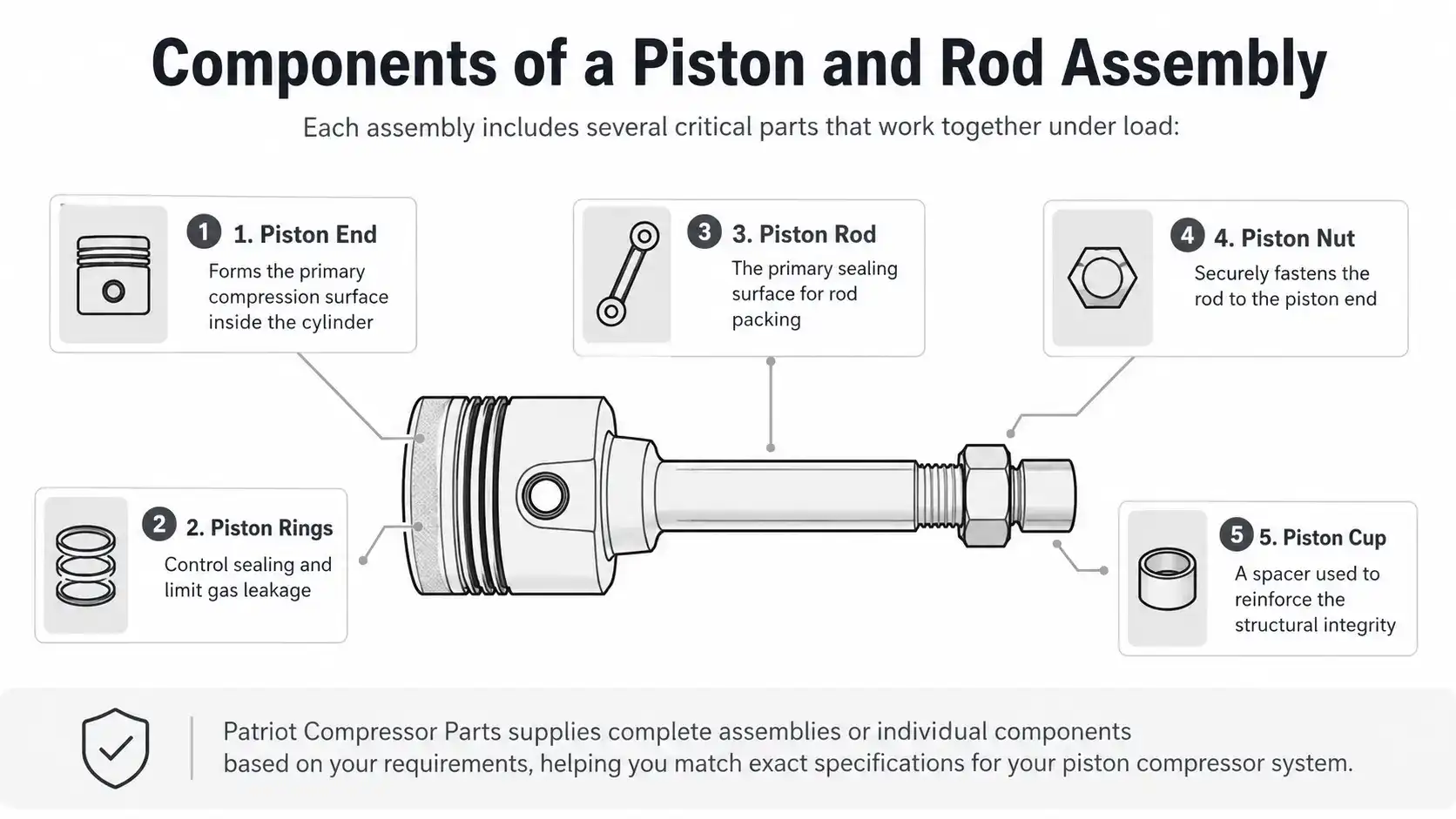

Request a QuoteComponents of a Piston and Rod Assembly
Each assembly includes several critical parts that work together under load:
- Piston End – Forms the primary compression surface inside the cylinder
- Piston Rings – Control sealing and limit gas leakage
- Piston Rod – The primary sealing surface for rod packing
- Piston Nut – securely fastens the rod to the piston end
- Piston Cup – A spacer used to reinforce the structural integrity
Patriot Compressor Parts supplies complete assemblies or individual components based on your requirements, helping you match exact specifications for your piston compressor system.
Piston Compressor Kits
For customers looking for a complete solution, a piston compressor kit provides all the necessary components in one package. These kits typically include the piston, rings, rod, wrist pin, and related hardware required for installation.
Using a piston compressor kit simplifies ordering and installation. It reduces compatibility issues and shortens downtime during maintenance. Patriot Compressor Parts offers kits matched to specific compressor models, helping your team get systems back online without unnecessary delays.
Benefits of Quality Assemblies
High-quality piston and rod assemblies support:
- Consistent compression output
- Reduced leakage and better sealing
- Lower maintenance frequency
- Longer service life of the piston compressor
Reliable parts translate directly into fewer interruptions and more predictable operation. For facilities that depend on continuous output, that consistency matters.
Applications and Industries
Piston compressor systems are widely used across industries such as:
- Natural gas processing
- Petrochemical operations
- Manufacturing facilities
- Industrial processing plants
Patriot Compressor Parts supports these sectors with assemblies that meet the demands of high-pressure and continuous-use environments.

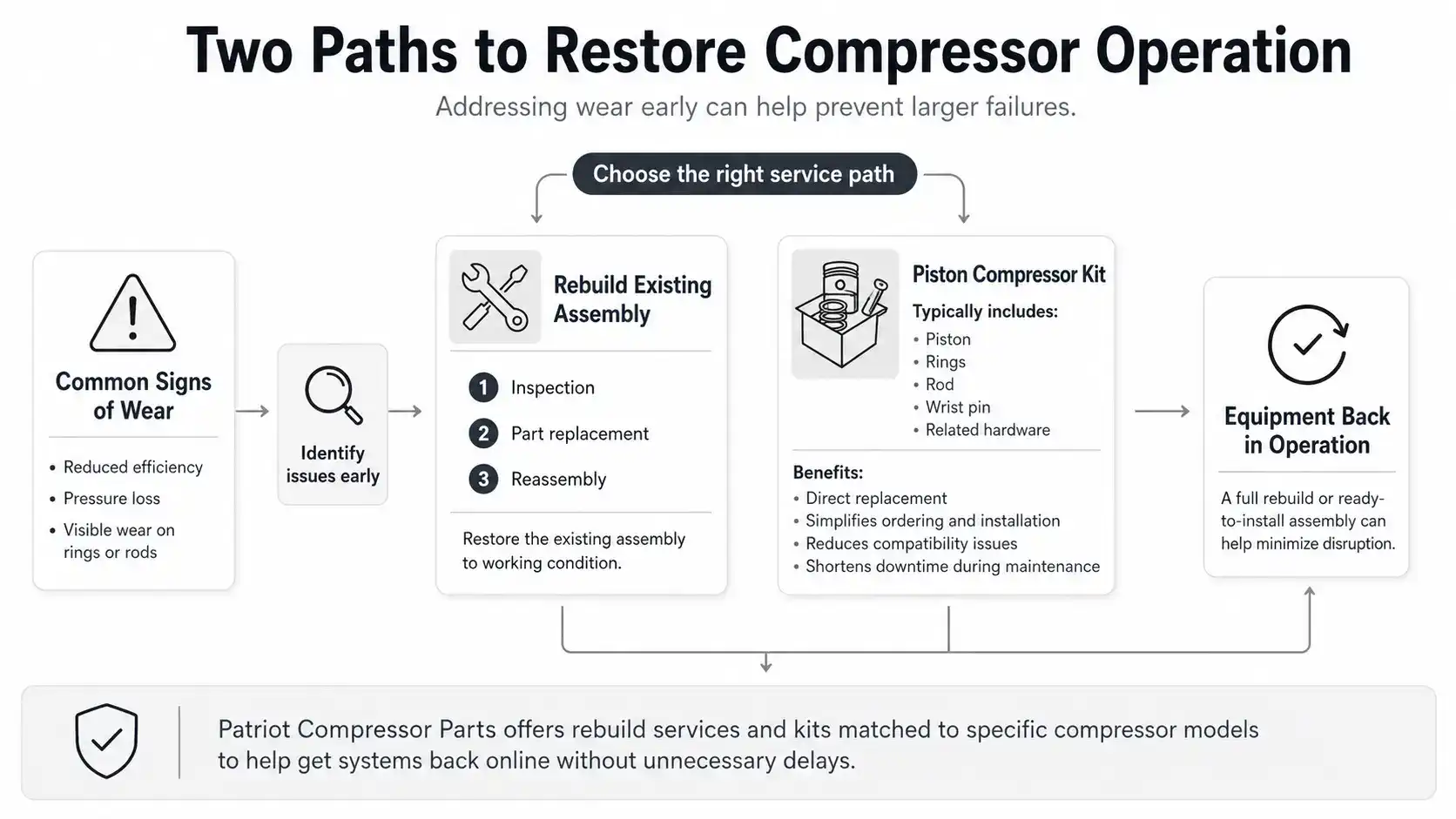

Replacement, Repair, and Rebuild Services
Wear is unavoidable in any piston compressor system. Common signs include reduced efficiency, pressure loss, and visible wear on rings or rods. Addressing these issues early can prevent larger failures.
Patriot Compressor Parts offers rebuild services that restore existing assemblies to working condition. This includes inspection, part replacement, and reassembly. For faster turnaround, customers can also opt for a piston compressor kit as a direct replacement.
Whether you need a full rebuild or a ready-to-install assembly, the focus stays on getting your equipment back into operation with minimal disruption.
Trust Patriot Compressor Parts LLC for Pistons and More
We’re proud to supply, manufacture, and service a wide range of compressor pistons and piston and rod assemblies for industrial clients in Texas, Oklahoma, and throughout the U.S. You can count on us for outstanding aftermarket compressor parts and exceptional service options regardless of the industry or type of compressor. Contact us today to schedule an appointment with a member of our team or to place an order!
